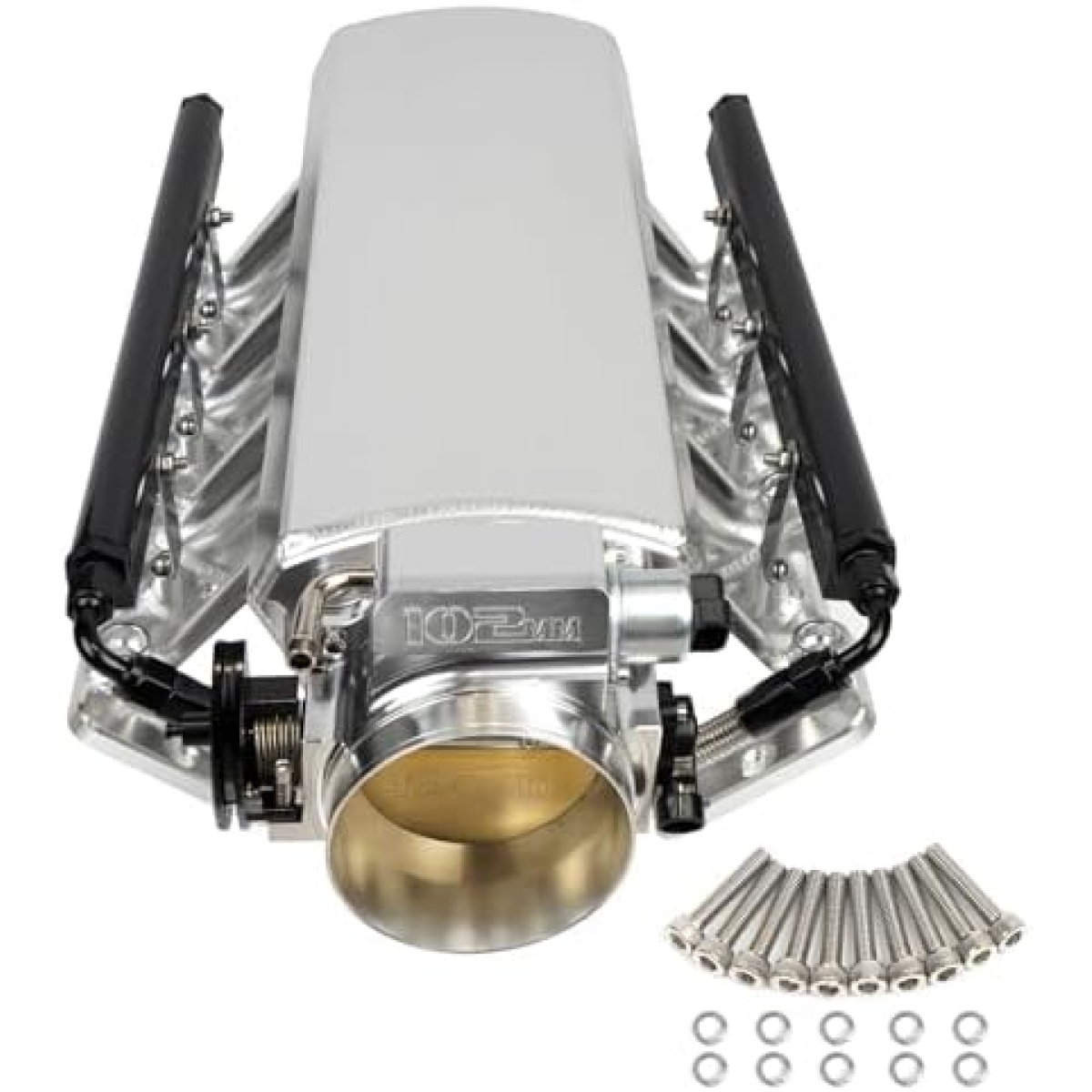

For LS Intake Manifold Compatible with LS1 LS2 LS6 of cathedral port heads with

Name: For LS Intake Manifold Compatible with LS1 LS2 LS6 of cathedral port heads with - Crestline Automotive
Price: 384.99 USD
Availability: InStock

Exclusive Shopping Event

Coupon: "CRESTLINE5"

Hurry and get discounts up to 5%

$384.99

Compare

Add to wishlist

Shipping and returns

Quick and reliable shipping for all orders. Hassle-free returns within a specified timeframe.

Warranty and Reliability:

At our company, we prioritize warranty and reliability to ensure our customers receive top-notch quality and service at all times. We stand behind the reliability of our products, offering warranties to guarantee their performance and durability. Our commitment to reliability extends beyond just our products; it encompasses our dedication to delivering exceptional customer service and support, building trust and confidence with every interaction.

Description

Product Description

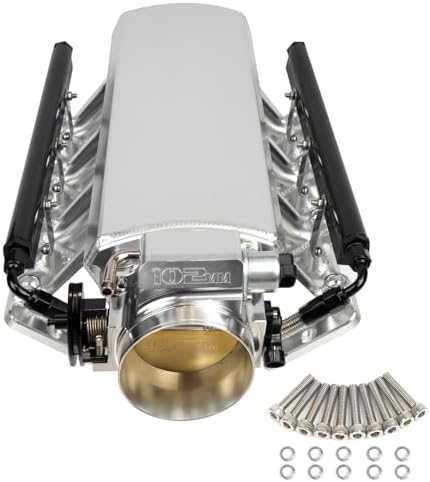

1 Overall Composition

2 Throttle Body Composition

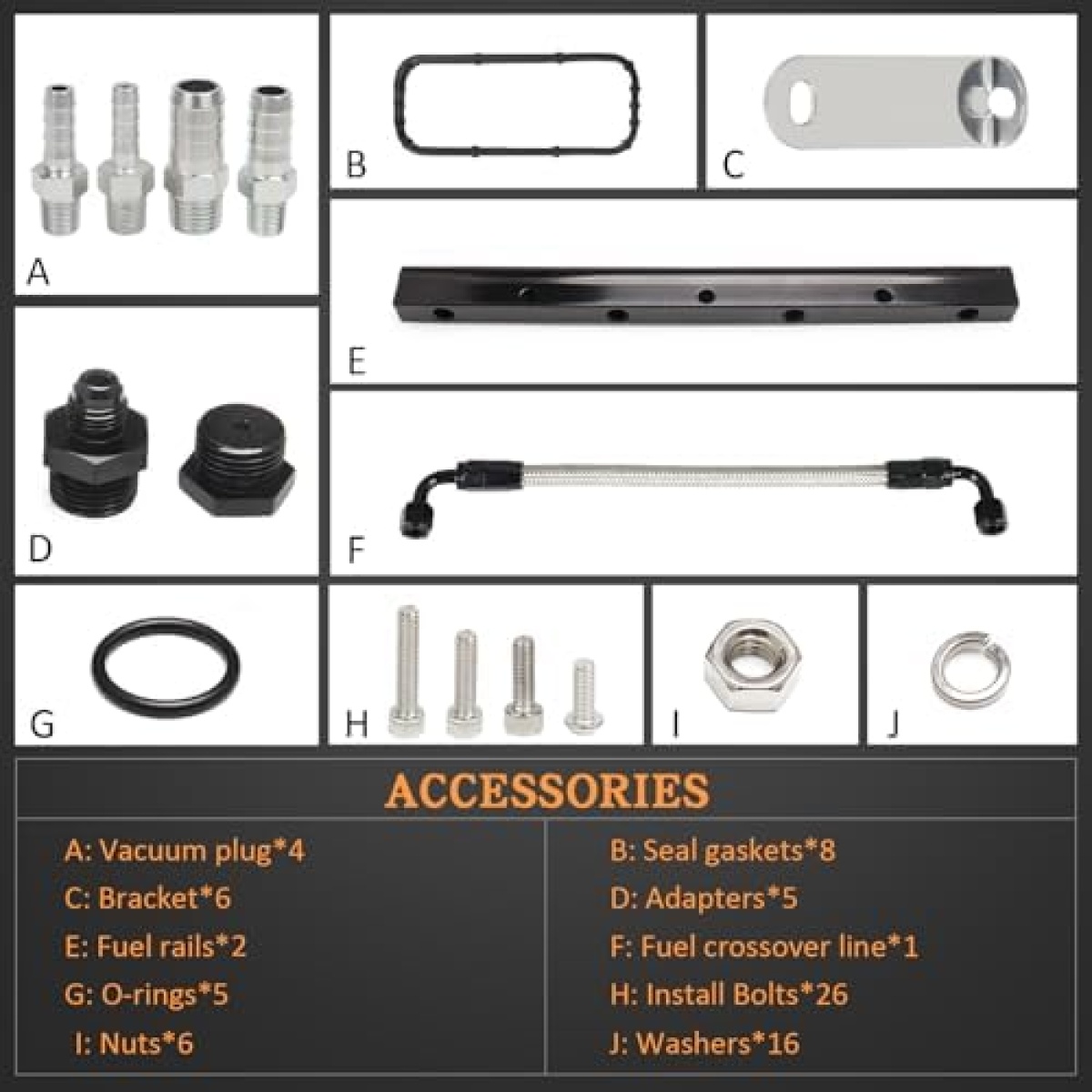

3 Accessories Composition

Throttle Body Parameter

Drive by cable

Bore Size-Back: 4.02″

Flow Rate: 1218 CFM

Working pressure: 85 PSI

Burst pressure: 245 PSI

Applicable Engine

Compatible with LS1, LS2, LS6 Original Engine.

Compatible with Chevrolet Small Block V8 GEN III/IV LS Based Engines with Cathedral Port Heads Shape:

4.8L / 293 CI (For LR4); 5.3L / 325 CI (For L33,L59,LM4,LM7); 5.7L / 346 CI（For LS1,LS6); 6.0L / 364 CI（For LQ4,LQ9,LS2).

Some Models: For LS 4 bolt intake with cable drive only, not for drive by wire.

Models: Compatible with Chevrolet Corvette 1997-2004, Z06 2001-2004 Models: Compatible with Pontiac Firebird Formula, Trans AM 1998-2002 Models: Compatible with Corvette Z06 2001-2004 Models: Compatible with Cadillac CTS V-series 2004-2005 Models: Compatible with Chevrolet Corvette 2005-2007 Models: Compatible with Chevrolet SSR 2005-2006 Models: Compatible with Chevrolet TrailBlazer SS 2006-2009 Models: Compatible with Cadillac CTS V-Series 2006-2007 Models: Compatible with Pontiac GTO 2005-2006 Models: Compatible with Saab 9-7X Aero 2008-2009

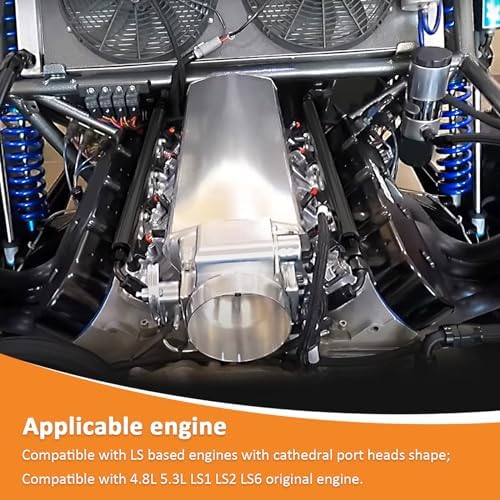

[Applicable Engine] Compatible with LS based engines with cathedral port heads shape; Compatible with 4.8L 5.3L LS1 LS2 LS6 original engine. For LS 4 bolt intake with cable drive only, not for drive by wire.
[Some Models] Compatible with Chevy Corvette 97-07 | Corvette Z06 01-04 | SSR 05-06 | TrailBlazer SS 06-09 | Cadillac CTS V-series 04-07 | Pontiac Firebird Formula Trans AM 98-02 | Pontiac GTO 05-06 | Saab 9-7X Aero 08-09.

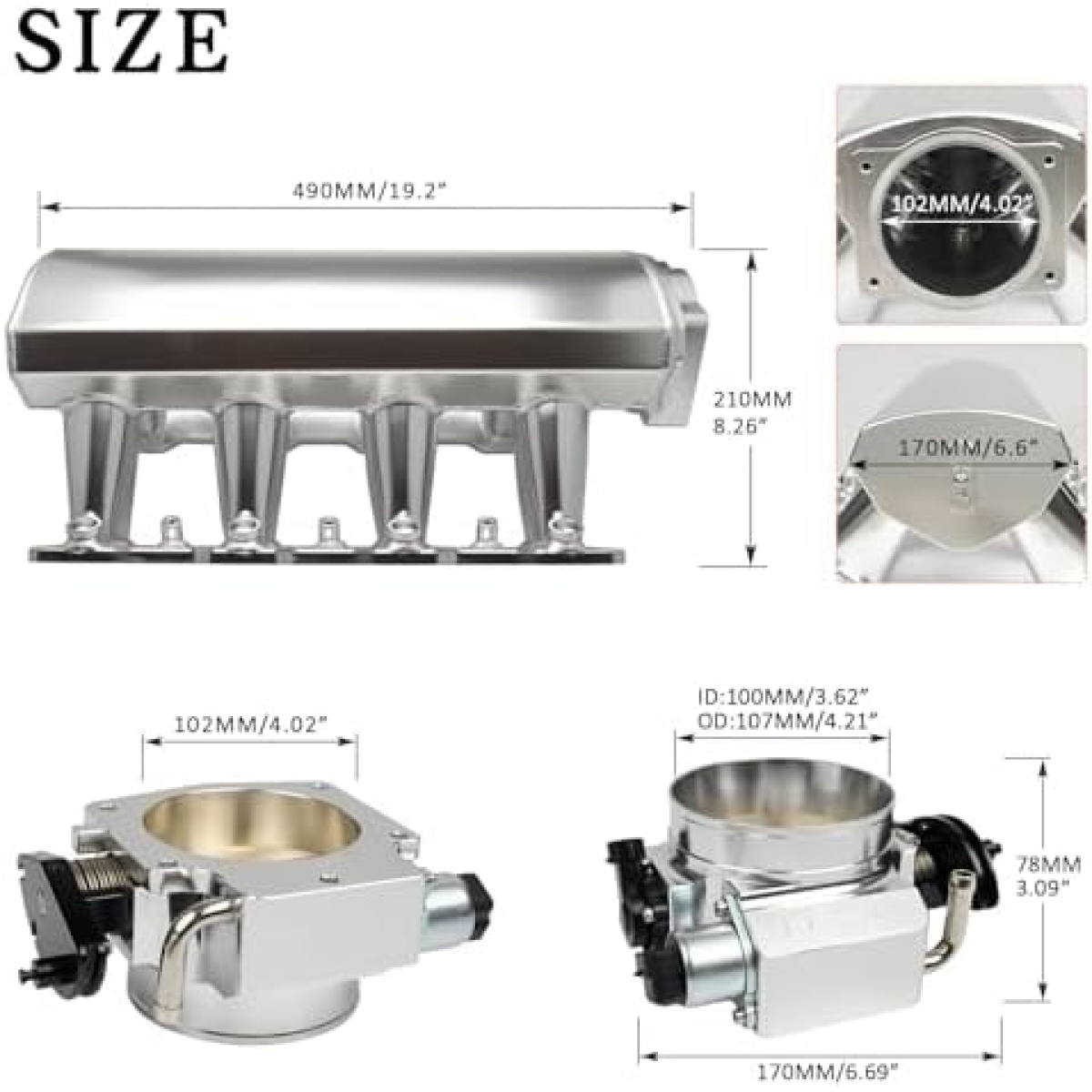

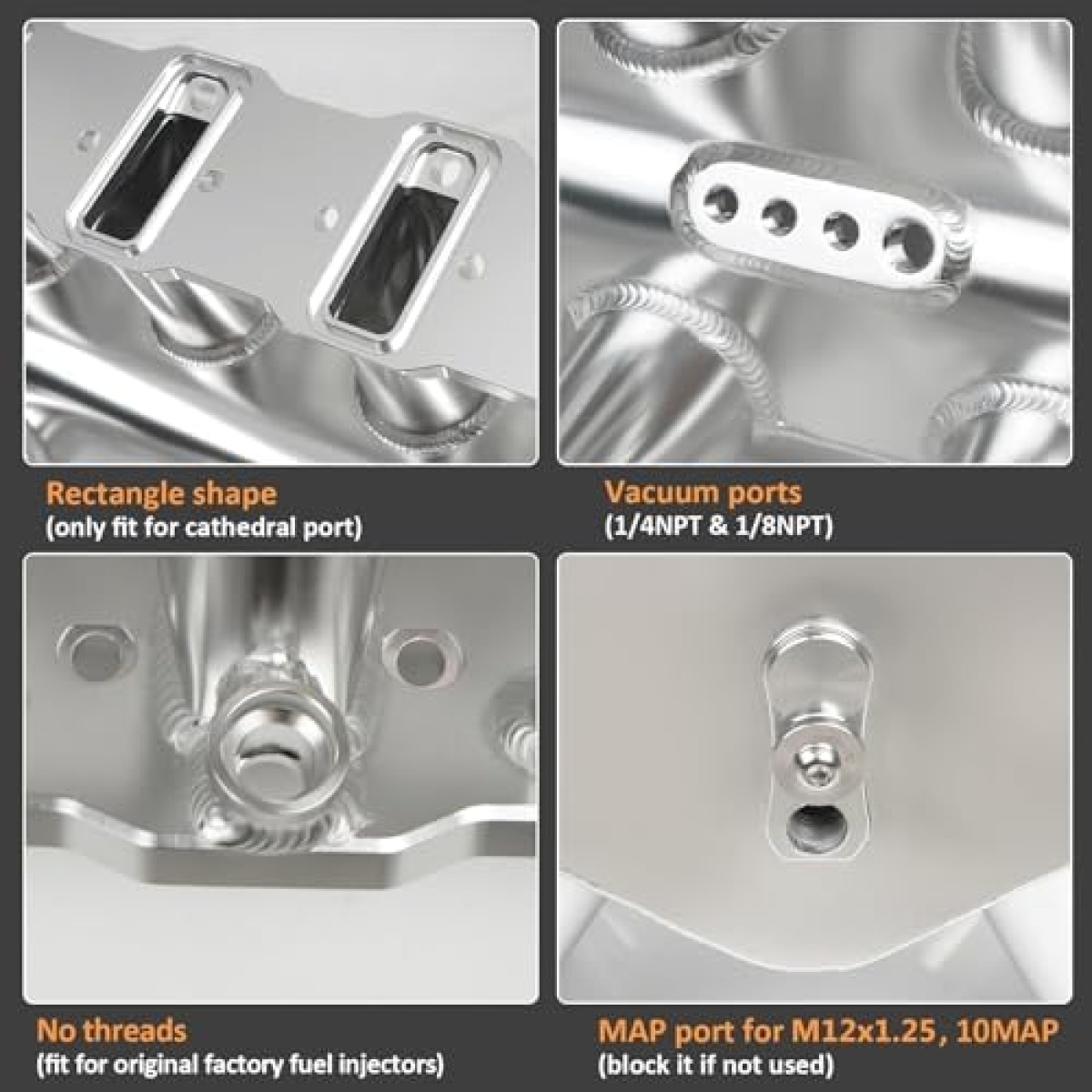

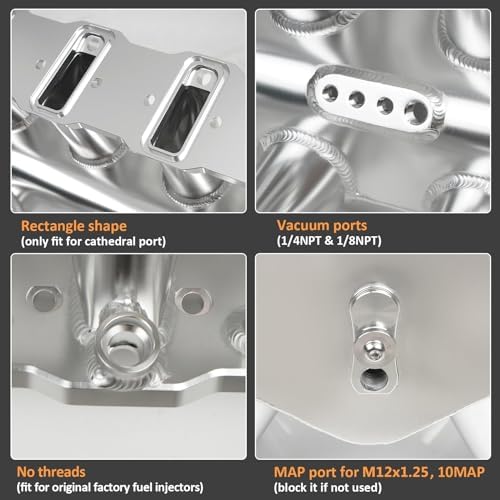

[Size] 102mm/4.02″ inlet with 210mm height (taller); 1/8″ thick T6061 aluminum; vacuum ports (1/4NPT & 1/8NPT) with plug; rear M12 x 1.25 MAP port for 10 MAP.

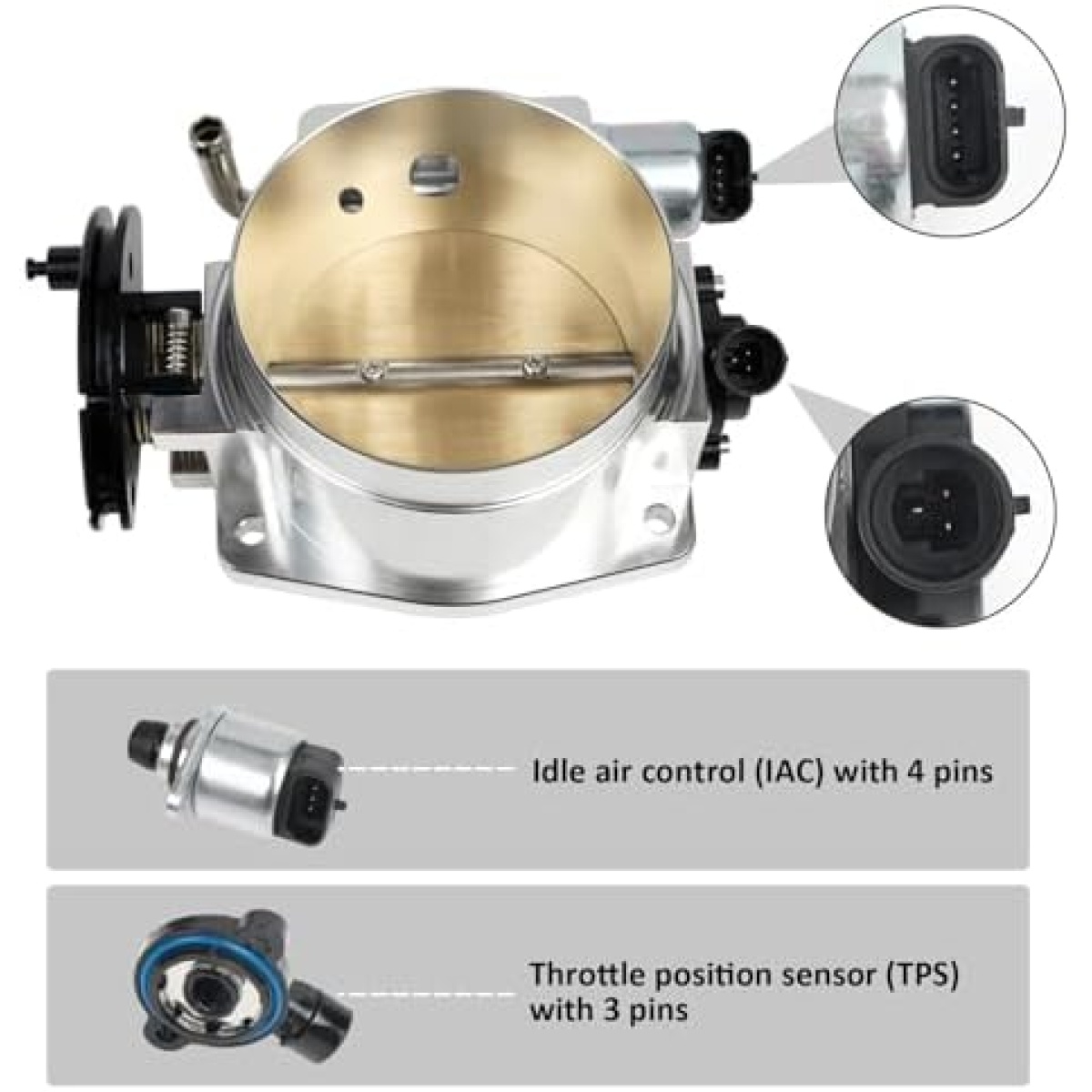

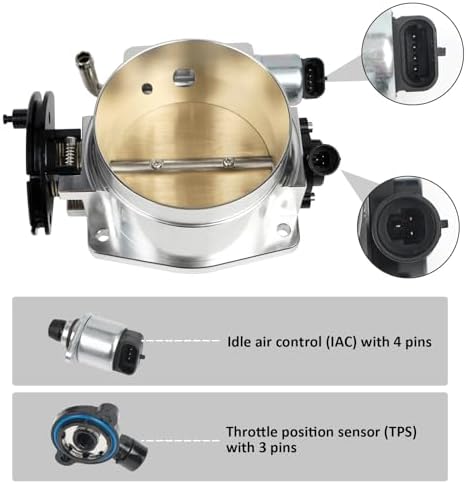

[Throttle Body] Drive by cable, Idle a-ir control (IAC) and throttle position sensor (TPS) installed. Flow Rate: 1218 CFM, Working pressure: 85 PSI, Burst pressure: 245 PSI.
[Note] Fits original factory fuel injectors for LS1 and LS6, but different spacers may be required for LS2.
